Using Discus 3.x or greater I am unable to print to the Bravo correctly. The Bravo prints the design in the corner of the disc or loads the disc in the tray and doesn't print at all.
Article ID: 44978

Question

Using Discus 3.x or greater I am unable to print to the Bravo correctly. The Bravo prints the design in the corner of the disc or loads the disc in the tray and doesn't print at all.

Answer

Using Discus 3.x or greater I am unable to print to the Bravo correctly. The Bravo prints the design in the corner of the disc or loads the disc in the tray and doesn't print at all.

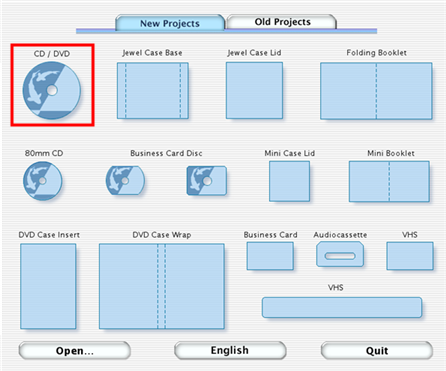

1. Since the Discus 3.x software is designed for many CD printers and templates it is important to choose the correct one for your Primera Bravo. When you open the software you will be prompted with the following screen. Choose CD/DVD.

2. When the software is open click on the Print tab to select the correct CD/DVD template. Click Select template... (Note: if Primera Bravo appears above the button the correct template is already set.)

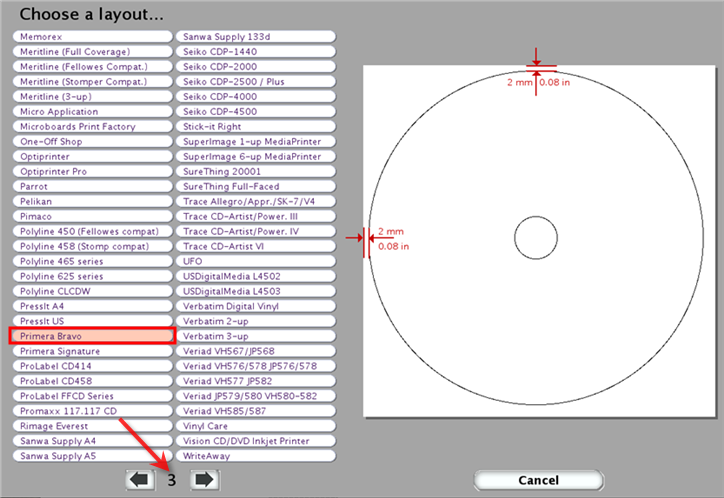

3. Choose "Primera Bravo". Notice the page toggle at the bottom of the screen. You may have to browse through several pages to find the Primera Bravo.

4. Finally, after the template is set correctly, go to the File Menu - select Page Setup. Choose the appropriate Printer and Paper Size. Click OK. You are now ready to print. (Note: The Page Setup option must also be set if you are burning and printing through Discribe)
